Karaoke sound Equipment Professional Amplifier*1 PC+ Karaoke Microphone Digital Induction*1 Set +Speakers

Package List

Package list for  Sound system

 Description For sound system

1. Description and parameter for Amplifier

This Package Deal includes the Sonken KA-11 Karaoke Mixing Amplifier (340 Watts/170 Per Side RMS) music output power with lots of Mixing Audio Features, Bluetooth Streaming, USB Vocal/Music Record and LED peak level visual indicators complete with matching Sonken CS-450 Passive 10" Speakers.

The perfect Amplifier and Speaker package for any occasion and suits a room up to 100sqm for that venue sound at home and will not disappoint, just connect your Karaoke Machine via RCA Stereo line in or pair your Digital Device (Phone, Tablet, Smart TV) via Bluetooth and start singing.

Sonken have range Wireless Microphones available and Karaoke Machines if you want to create a complete package.

• 340 Watts (RMS) Music Output Power (170W + 170W).
• 2 Microphone Inputs (6.35mm Jack) with Peak LED indicator and -20db Gain push button.
• Individual Microphone Controls for the (Volume, Balance, Echo, Low / Mid / High) controls.
• Separate Settings for the Echo Effect (Volume, Low / Mid / High, Repeat and Delay) with independed Stereo/Mono push button selector.
• Separate Settings for the (Volume, Balance, Low / Mid / High) controls.
• Master Controls for the (Volume, Balance, Low / Mid / High) settings.
• Line-In (Stereo - RCA) Audio Connection.
• Music Peak Level Indicators.
• Bluetooth Music Streaming.
• Music, Vocal Mix Record to USB (Music From Line-In Source).
• Dimensions 42cm (W) 36cm (D) 15cm (H), Weighs Approx. 9kg.
• Designed by Sonken in Sydney Australia.
• 6Months Warranty.

1. Description and parameter for Loud speaker:

• Dimensions 50cm (W) 32cm (D) 30cm (H), Weighs Approx. 13.5kg each, can be tripod mounted. (Stands Optional)
• 6 Months Warranty.

Description and Parameter for Microphone:

Industry pioneering automatic hand induction patent technology, the MIC will be mute automatically after leaving hands and being dormant for 3 seconds. (This is for any direction or any angle’s placing)

After 5 minutes, the MIC will automatically get into energy saving standby mode; and after 15 minutes, will automatically power off and completely turn off power supply. It is a new concept intelligent and automatic microphone.

- Bran-new audio circuit structure, high pitch is exquisite, the medium and low frequency is strong. Especially the sound has perfect expressive capacity on details. Super strong dynamic tracking ability makes it freely pick up voice with far or near distance.

- Bran-new concept digital pilot technology, completely solves string frequency phenomenon each other in KTV rooms, won’t happen string frequency forever.

- The configuration has the circuit of noise suppression function, can be debugged easily.

- Automatically search no-interference channel function, installation is more convenient.

- Flexible limitation of the output maximum volume, adapts to more big range.

- UHF frequency range, phase-locked loop (PLL) frequency synthesis

- 100 *2 signal channels, channel space is 250 KHZ

- Super heterodyne secondary frequency conversion design, has extremely high receiving sensitivity

- RF part adopts multilevel high-performance dielectric filter, owns good anti-interference ability.

- The first intermediate frequency adopts acoustic filters; the second intermediate frequency uses level 3 ceramic filters, efficiently improve the anti-interference ability

- The especially designed mute circuit completely eliminates the microphone’s impacting noise due to turn on and off.

- The microphone adopts readily available 5# batteries, last for 6-10 hours continuously.

- The microphone adopts unique step-up design; low quantity of battery charge does not affect the overall performance.

- The operating radius can reach 80 meters in ideal environment, suitable for all kinds of requiring place.

- The default configuration is with LCD blue backlight and aluminum alloy MIC duct body.

- Has adjustable transmitting power and adjustable noise threshold, There is external noise control knob on the rear panel of receiver, can according to need to freely set effective operating radius between 10m-80m.

- Has automatic Infrared to frequency function, can make the microphone rapidly synchronize with the receiver’s working signal channel.

- Special models for KTV engineering, two microphones, one host, easily configure more than 100 KTV rooms. The design of product’s structure is unique, maintenance is quick and easy.

Applicable occasions:

Apply high-grade KTV room, small and medium-sized performance classroom and meeting room etc. It is this year’s key new products, are extremely welcomed by customers.

Packing type :

Conventional color box packaging （see detail sample model）

Digital pilot series of main technical parameters

Frequency range……………………………740-790 MHZ

Tunable channel number………………100x 2

Oscillation mode……………………………Phase locked loop (PLL ) frequency synthesis

Frequency stability……………………….. ±10 PPM

Reception mode……………………………. super heterodyne secondary frequency conversion

Pilot way………………………………………..Digital pilot

Receiving sensitivity……………………… -95--67DBM

ACOUSTIC FRQUENCYRESPONSE……40-18000 HZ

Harmonic distortion……………………….≤0. 5%

Signal to noise ratio………………………. ≥100 dB

Audio output…………………………………Equilibrium output and mixed output

Transmission power…………………….. 3-30mW

Modulation mode…………………………Frequency modulation (FM )

The battery specification………………Two 5# batteries

Power supply specifications…………100-240V 50-60HZ 12 VDC power adapter (switch)

                            Or 200VAC/50-60HZ 12VDC (linear power supply)

The power consumption…………….. ≤ 10W

 Product picture display

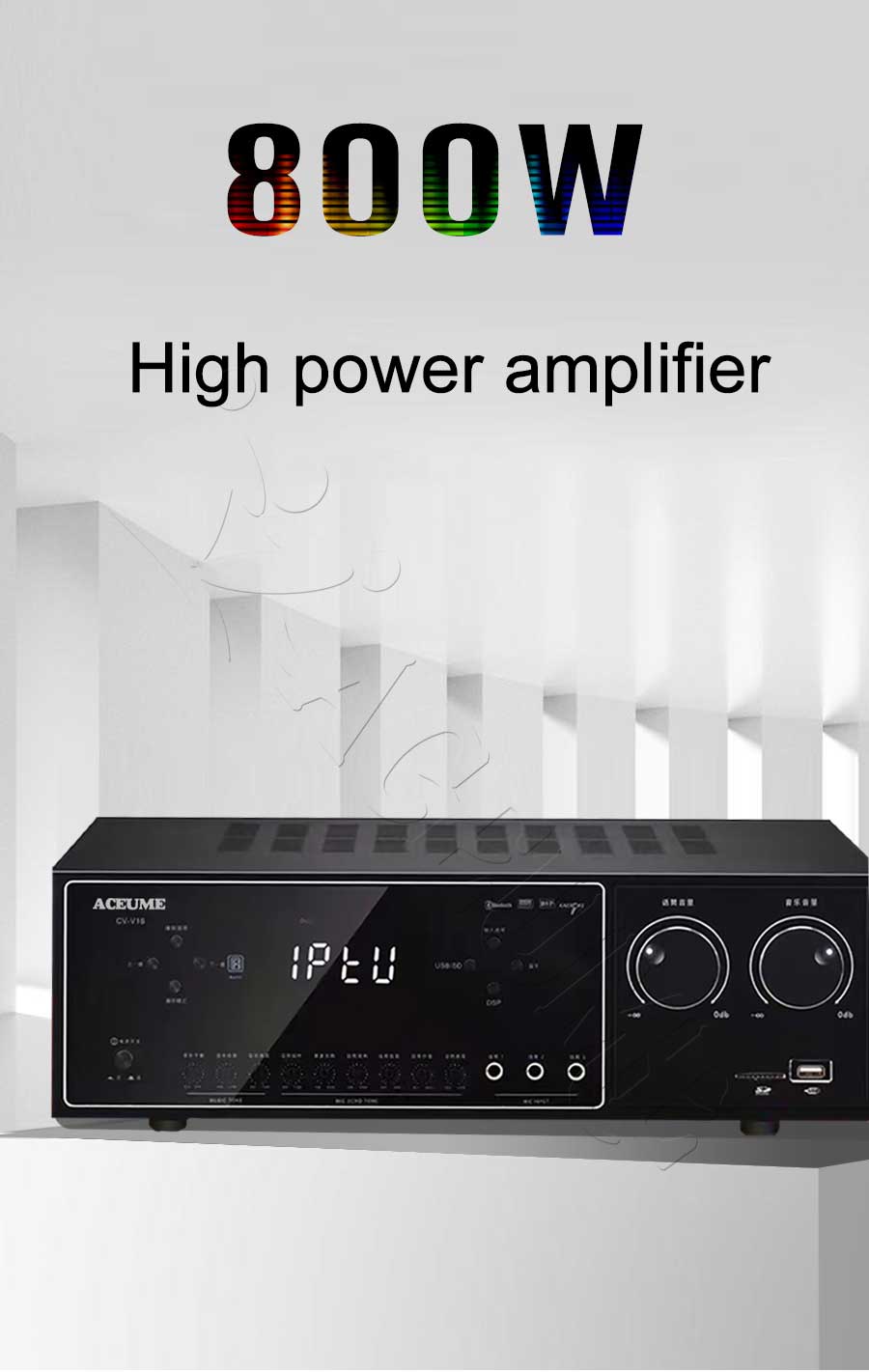

Picture for  Amplifier+Loudspeaker
